ER - Collet Systems

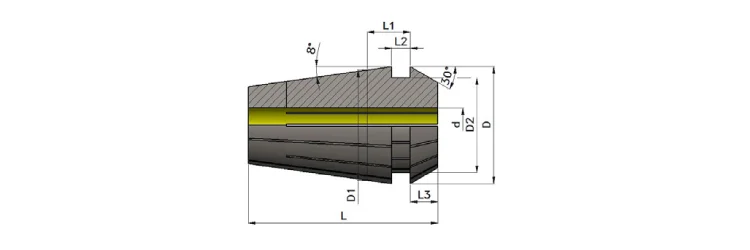

ER Collects DIN 6499

ER Collects DIN 6499
Part No. L L1 L2 L3 D D1 D2
ER 8 13.5 12.98 1.2 1.5 8.5 8.0 6.5
ER 11 18.0 3.80 2.0 2.5 11.5 11.0 9.5
ER 16 27.5 6.26 2.7 4.01 17.0 16.0 13.8
ER 20 31.5 6.36 2.8 4.8 21.0 20.0 17.4
ER 25 34.0 6.66 3.1 5.0 26.0 25.0 22.0
ER 32 40.0 7.16 3.6 5.5 33.0 32.0 29.2
ER 40 46.0 7.66 4.1 7.0 41.0 40.0 36.2
ER 50 60.0 12.60 5.5 8.5 52.0 50.0 46.0

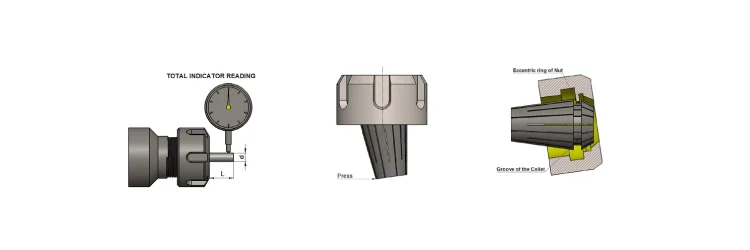

ER Collects Concentricity Specification

Method of Insertion & Release of ER Collets

  1. Insert collet into nut at angle as shown to engage extraction tonge in groove of collet
  2. Screw nut onto collet with collet securely in nut
  3. Insert tool to be gripped and lock nut
  1. Hold nut in vertical position
  2. Press collet side ways as shown by the arrow to release the collet from nut
Clamping range L Max T.I.R
1.0 - 1.6 6 0.015
1.6 - 3.0 10
3.0 - 6.0 16
6.0 - 10.0 25

10.0 - 18.0 40 0.020
18.0 - 26.0 50

26.0 - 34.0 60 0.025
