EMH - End mill holder

End mill holder are mainly used for securely holding cutters and endmills having Weldon flats with high levels of rigidity. It is used for securely holding the tool and preventing the tool from rotating while machining. It is mainly used for rough machining and for applications which require a large amount of material to be removed.

ISO 40 Standard GPL ISO 50 Standard GPL Spares

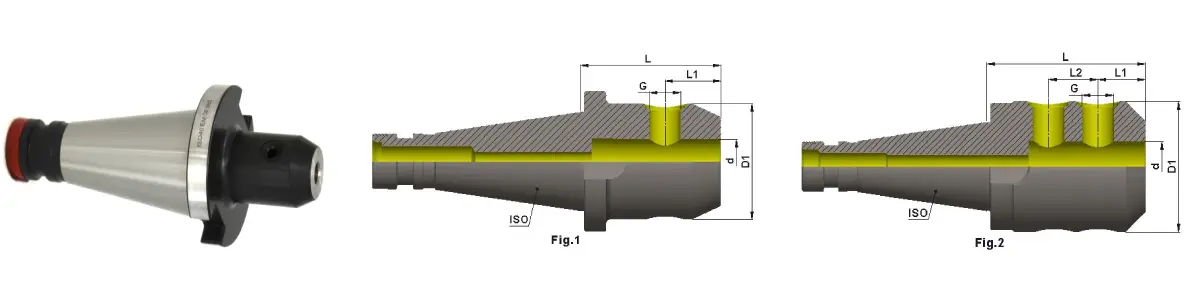

Part No.	Product Name	Taper	Form	d	L	D1	G	L1	L2	Kgs	Group
F1D401A-EMH10050	ISO40 AD EM 10 050	40	AD	10	50	35	M10	20	-	1.2	B2200
F1D401A-EMH12050	ISO40 AD EM 10 050	40	AD	12	50	42	M12	22.5	-	1.2	B2200
F1D401A-EMH14050	ISO40 AD EM 14 050	40	AD	14	50	44	M12	22.5	-	1.4	B2200
F1D401A-EMH16063	ISO40 AD EM 16 063	40	AD	16	63	48	M14	24	-	1.4	B2200
F1D401A-EMH18063	ISO40 AD EM 18 063	40	AD	18	63	50	M14	24	-	1.5	B2200
F1D401A-EMH20063	ISO40 AD EM 20 063	40	AD	20	63	52	M16	25	-	1.6	B2200
F1D401A-EMH25080	ISO40 AD EM 25 080	40	AD	25	80	65	M18X2	24	25	1.6	B2200
F1D401A-EMH32080	ISO40 AD EM 32 080	40	AD	32	80	72	M20X2	24	28	2.2	B2200
F1D401A-EMH40090	ISO40 AD EM 40 090	40	AD	40	90	80	M20X2	30	32	3.7	B2200

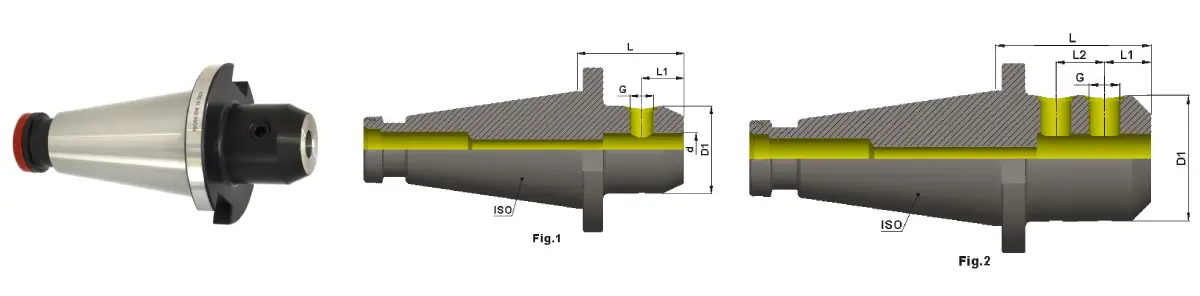

Part No.	Product Name	Taper	Form	d	L	D1	G	L1	L2	Kgs	Group
F1D501A-EMH10063	ISO50 AD EM 10 063	50	AD	10	63	35	M10	20	-	3.7	B2200
F1D501A-EMH12063	ISO50 AD EM 12 063	50	AD	12	63	42	M12	22.5	-	3.7	B2200
F1D501A-EMH14063	ISO50 AD EM 14 063	50	AD	14	63	44	M12	22.5	-	3.8	B2200
F1D501A-EMH16063	ISO50 AD EM 16 063	50	AD	16	63	48	M14	24	-	3.8	B2200
F1D501A-EMH18063	ISO50 AD EM 18 063	50	AD	18	63	50	M14	24	-	3.8	B2200
F1D501A-EMH20063	ISO50 AD EM 20 063	50	AD	20	63	52	M16	25	-	3.8	B2200
F1D501A-EMH25080	ISO50 AD EM 25 080	50	AD	25	80	65	M18X2	24	25	4	B2200
F1D501A-EMH32080	ISO50 AD EM 32 080	50	AD	32	80	72	M20X2	24	28	4.3	B2200
F1D501A-EMH40090	ISO50 AD EM 40 090	50	AD	40	90	90	M20X2	30	32	6.2	B2200

Grub Screw

Part No.	G	L	S	Group
F1GSWD-10M06	M6	10	3	D4400
F1GSWD-10M08	M8	10	4	D4400
F1GSWD-12M10	M10	12	5	D4400
F1GSWD-16M12	M12	16	6	D4400
F1GSWD-16M14	M14	16	6	D4400
F1GSWD-16M16	M16	16	8	D4400
F1GSWD-20M18	M18	20	10	D4400
F1GSWD-20M20	M20	20	10	D4400
F1GSWD-25M24	M24	25	12	D4400
