Falcon offers tool holders for CNC machines having manual tool change to suit DIN 2080 machines
spindles consisting of ISO30, ISO40 & ISO50. ISO60 taper tool holders are also available on a special
made-to-order basis. Tool holder range for DIN 2080 consists of
- ER collet chuck holders
- End mill holders
- Face mill arbors
- Morse taper adaptors

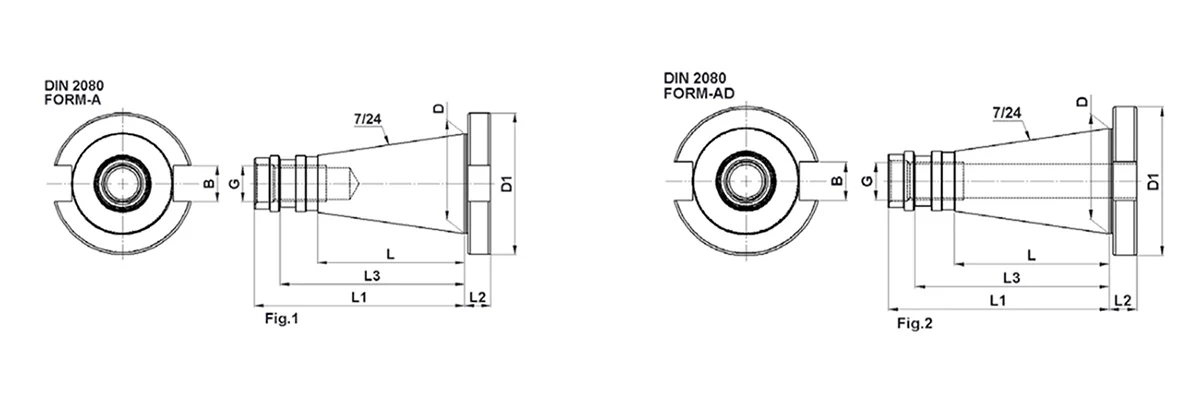

Form A & AD
| Machine Design |
TAPER ISO |
D |
D1 |
L |
L1 |
L2 |
L3 |
B |
G |
| ISO30 |
30 |
31.75 |
50 |
48.4 |
68.4 |
9.6 |
- |
16.1 |
M12 |
| ISO40 |
40 |
44.45 |
63 |
65.4 |
93.4 |
11.6 |
82 |
16.1 |
M16 |
| ISO50 |
50 |
69.85 |
97.5 |
102.0 |
126.8 |
15.2 |
115 |
25.7 |
M24 |
