SHK DETAIL - Shank Detail

Machine Design

BT shanks are one of the most common tooling systems used. It is the 7/24 taper from Japan. It is available in both Centre through coolant - Form JD (AD) and flange through coolant - Form JD/JF (AD/B) It is the first instance of the 7/24 taper available with automatic tool changer (ATC) BT tool holders use metric pull studs (retention knobs). Falcon offers BT tool holders in sizes BT30, BT40, BT50 and even offers BT15 taper tool holders on request. All BT tool holders made in Falcon conform with AT3 class tolerance and are case hardened.

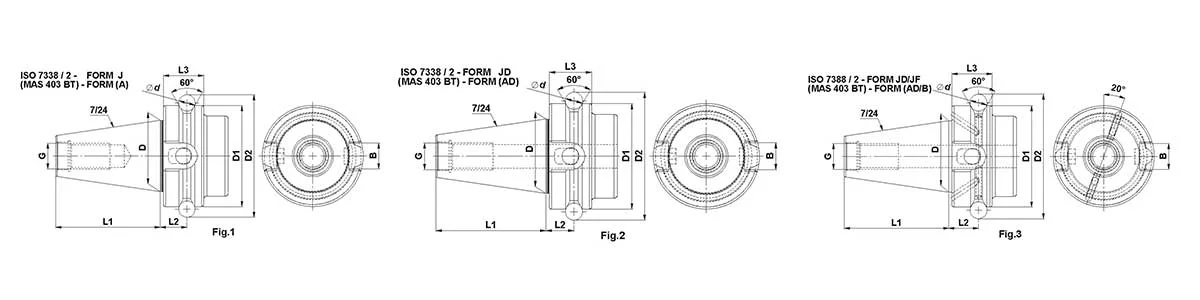

Form J (A) , JD (AD) , JD/JF (AD/B)

JIS-6339 Shank
Machine Design TAPER ISO D D1 D2 L1 L2 L3 d. B G e1
BT30 30 31.75 46.0 56.14 48.4 13.6 22 8 16.1 M12 20
BT35 35 38.1 53.0 61.97 56.4 14.6 24 9 16.1 M12 -
BT40 40 44.45 63.0 75.68 65.4 16.6 27 10 16.1 M16 27
BT50 50 69.85 100.0 119.02 101.8 23.2 38 15 25.7 M24 42

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
