External Turning Tool-Top Clamp

Precision.. Reliability.. Economy..

HSK T63
(TURN MILL-MULTI TASK)

INTERNAL BORING BARS-LEVER CLAMP

Send enquiry

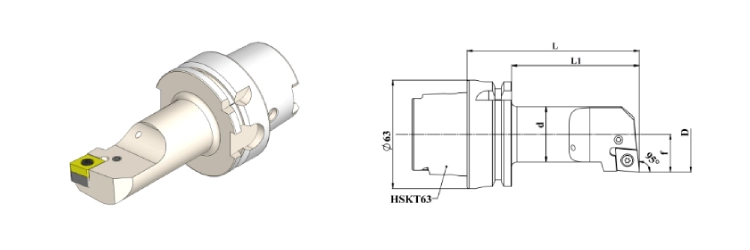

PCLN

Internal Pcln

Note: Above shown images are Left Hand

Part No. Product Name d. l. L2 f. D Inserts Group
F1T063X-PCLNLI12100 HSK T63 PCLNL 12 100-INTERNAL 25 100 74 17 32 CNM.120408 D9900
F1T063X-PCLNRI12100 HSK T63 PCLNR 12 100-INTERNAL 25 100 74 17 32 CNM.120408 D9900
F1T063X-PCLNLI12120 HSK T63 PCLNL 12 120-INTERNAL 32 120 94 22 40 CNM.120408 D9900
F1T063X-PCLNRI12120 HSK T63 PCLNR 12 120-INTERNAL 32 120 94 22 40 CNM.120408 D9900
F1T063X-PCLNLI12140 HSK T63 PCLNL 12 140-INTERNAL 40 140 114 27 50 CNM.120408 D9900
F1T063X-PCLNRI12140 HSK T63 PCLNR 12 140-INTERNAL 40 140 114 27 50 CNM.120408 D9900

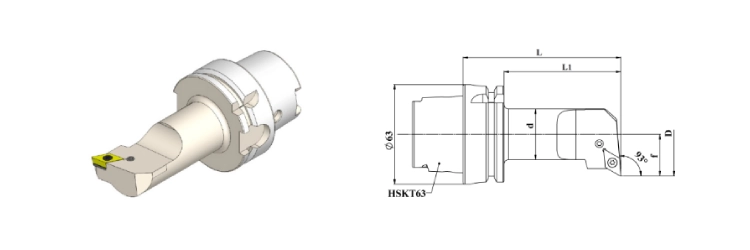

PDUN

Pdun

Note: Above shown images are Left Hand

Part No. Product Name d. l. L2 f. D Inserts Group
F1T063X-PDUNLI15120 HSK T63 PDUNL 15 120-INTERNAL 32 120 94 22 40 DN.150608 D9900
F1T063X-PDUNRI15120 HSK T63 PDUNR 15 120-INTERNAL 32 120 94 22 40 DN.150608 D9900
F1T063X-PDUNLI15140 HSK T63 PDUNL 15 140-INTERNAL 40 140 114 27 50 DN.150608 D9900
F1T063X-PDUNRI15140 HSK T63 PDUNR 15 140-INTERNAL 40 140 114 27 50 DN.150608 D9900
