PLBT (FACE CONTACT)

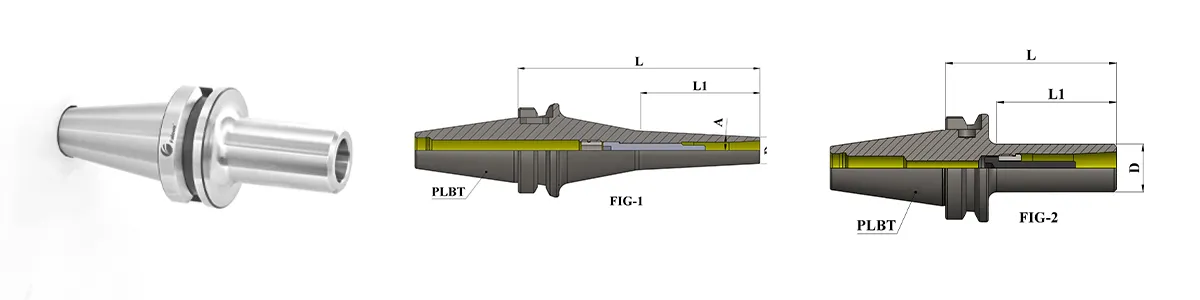

PLBT30

Part No.	Product name	Taper	D	Clamping range	L	L1	A	Screw detail	Allen Key	Kgs	FIG	Group
F1B321H-DMC06060	PLBT30 DC06 060	30	13	2-6	60	26	3	M5	4x100	0.45	1	B1000
F1B321H-DMC06090	PLBT30 DC06 090	30	13	2-6	90	50	3	M5	4x100	0.5	1	B1000
F1B321H-DMC06120	PLBT30 DC06 120	30	13	2-6	120	60	3	M5	4x100	0.651	1	B1000
F1B321H-DMC12070	PLBT30 DC12 070	30	34	3-12	70	44	-	M10	8x100	0.63	2	B1000

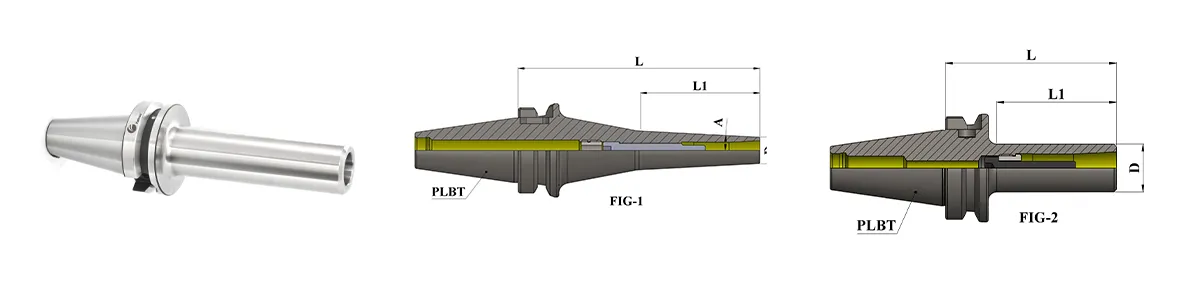

PLBT40

Part No.	Product name	Taper	D	Clamping range	L	L1	A	Screw detail	Allen Key	Kgs	FIG	Group
F1B421H-DMC06060	PLBT40 DC06 060	40	13	2-6	60	26	3	M5	4x100	1.00	1	B1000
F1B421H-DMC06090	PLBT40 DC06 090	40	13	2-6	90	45	3	M5	4x100	1.20	1	B1000
F1B421H-DMC06120	PLBT40 DC06 120	40	13	2-6	120	60	3	M5	4x150	1.30	1	B1000
F1B421H-DMC06160	PLBT40 DC06 160	40	13	2-6	160	76	3	M5	4x150	2.94	1	B1000
F1B421H-DMC08090	PLBT40 DC08 090	40	22	3-8	90	53	3	M6	5x100	1.20	1	B1000
F1B421H-DMC08120	PLBT40 DC08 120	40	22	3-8	120	65	3	M6	5x150	1.40	1	B1000
F1B421H-DMC12070	PLBT40 DC12 070	40	34	3-12	70	38	3	M10	8x100	1.10	2	B1000
F1B421H-DMC12090	PLBT40 DC12 090	40	34	3-12	90	55	-	M10	8x100	1.30	2	B1000
F1B421H-DMC12120	PLBT40 DC12 120	40	34	3-12	120	88	-	M10	8x150	1.40	2	B1000
F1B421H-DMC12150	PLBT40 DC12 150	40	34	3-12	150	118	-	M10	8x150	1.60	2	B1000

PLBT50

Part No.	Product name	Taper	D	Clamping range	L	L1	A	Screw detail	Allen Key	Kgs	Group
F1B521H-DMC12100	PLBT50 AD DC 12 110	50	34	3-12	110	64	-	M10	8x150	3.90	B1000
F1B521H-DMC12150	PLBT50 AD DC 12 150	50	34	3-12	150	104	-	M10	8x200	4.10	B1000
