Precision.. Reliability.. Economy..
| ITEMS | Product Name | L | L1 | G | D | Group |
|---|---|---|---|---|---|---|

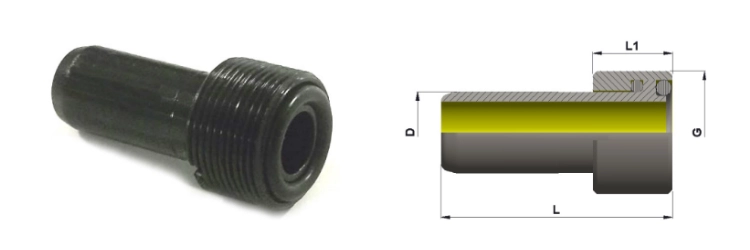

| F1CTUB-50HSK | Coolant tube HSK A50 | 33 | 9.5 | M16X1 | Ø10 | A4400 |
| F1CTUB-63HSK | Coolant tube HSK A63 | 36.5 | 11.5 | M18X1 | Ø12 | A4400 |
| F1CTUB-80HSK | Coolant tube HSK A80 | 40 | 13.5 | M20X1.5 | Ø14 | A4400 |
| F1CTUB-10HSK | Coolant tube HSK A100 | 44 | 15.5 | M24X1.5 | Ø16 | A4400 |
| ITEMS | Product Name | L | L1 | G | D | Group |
|---|---|---|---|---|---|---|

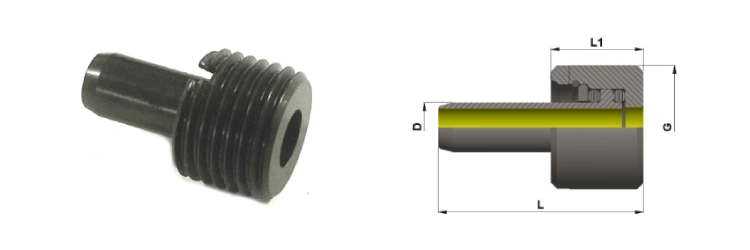

| F1CTUB-C3001 | POLYGON COOLANT TUBE C3-01 | 22.4 | 10 | M12x1.5 | Ø5 | A4400 |
| F1CTUB-C4001 | POLYGON COOLANT TUBE C4-01 | 25 | 12 | M14X1.5 | Ø6 | A4400 |
| F1CTUB-C5001 | POLYGON COOLANT TUBE C5-01 | 28.3 | 14 | M16X1.5 | Ø7 | A4400 |
| F1CTUB-C6001 | POLYGON COOLANT TUBE C6-01 | 31 | 15 | M20X2 | Ø8 | A4400 |
| F1CTUB-C6002 | POLYGON COOLANT TUBE C6-02 | 33.2 | 15 | M20X2 | Ø8 | A4400 |
| F1CTUB-C8001 | POLYGON COOLANT TUBE C8-01 | 31.7 | 15 | M20X2 | Ø10 | A4400 |
| F1CTUB-C8002 | POLYGON COOLANT TUBE C8-02 | 33 | 15 | M20X2 | Ø10 | A4400 |
