ABOUT GYRO

FALCON GYRO made up with disc. When its mounted it can rotate rapidly about an locating axis which is itself free to alter in radial & angle move. The position of the axis is not affected by tilting of the disc,So gyro can be used to provide the centre alignment CNC & Turret lathe.

FEATURES

Improves cutting accuracy & tool life
Reduces the total machining time
Prolong the tool life

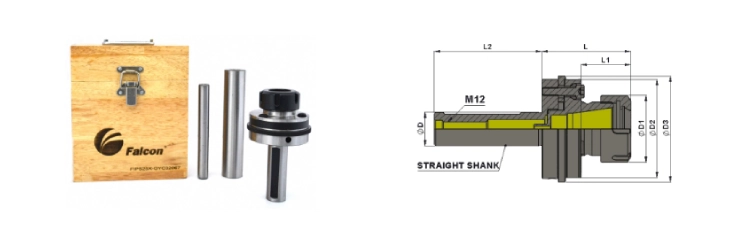

Parallel Shank

ITEMS	Product Name	Clamping range	D	D1	D2	L	L1	L2	Kgs	Group
F1PS25X-GYC32067	PARALLEL SHANK 25 GYRO CHUCK 32 067	2 - 20	25	50	74	66.65	36.5	80	2.37	D1000
F1PS32X-GYC32067	PARALLEL SHANK 32 GYRO CHUCK 32 067	2 - 20	32	50	74	66.65	36.5	80	2.80	D1000
F1PS40X-GYC32067	PARALLEL SHANK 40 GYRO CHUCK 32 067	2 - 20	40	50	74	66.65	36.5	80	3.04	D1000

Note:

GYRO in parallel shank, Test bush & Mandrel

ER32 Ø16 Collet required for assembly
