PLBT (FACE CONTACT)

Precision.. Reliability.. Economy..

DCH Drill Chuck Adaptor (DIN 238)

PLBT– Form A

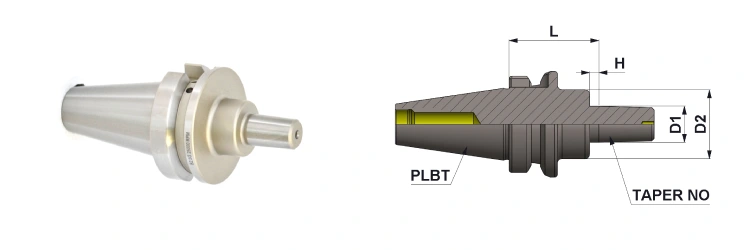

PLBT30 – Standard GPL

DCH - PLBT30 – Standard GPL
Part No. Product name Taper Form Taper No. L Clamping range D1 D2 H Kgs Group
F1B325X-DCB16045 PLBT30 - Drill Chuck B 16 045 30 A B16 45 0.8 – 1.3 15.73 30 4 0.5 B4000
F1B325X-JTA06045 PLBT30 - Drill Chuck JTA 06 045 30 A JTA6 45 0.8 – 1.3 17.17 30 3.2 0.6 B4000

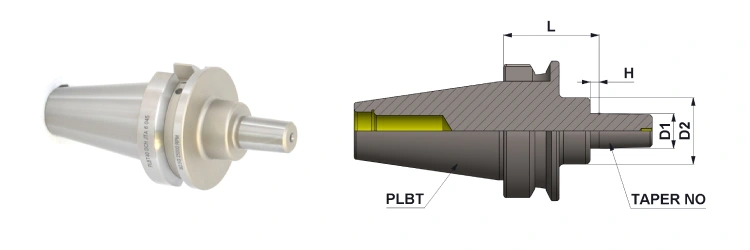

PLBT40 – Standard GPL

DCH - PLBT40 – Standard GPL
Part No. Product name Taper Form Taper No. L Clamping range D1 D2 H Kgs Group
F1B425X-DCB16045 PLBT40 - Drill Chuck B 16 045 40 A B16 45 0.8 – 1.3 15.73 30 4 1.1 B4000
F1B425X-JTA06045 PLBT40 - Drill Chuck JTA 06 045 40 A JTA6 45 0.8 – 1.3 1717 30 3.2 1.1 B4000

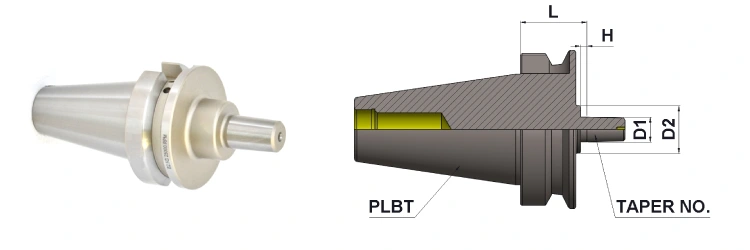

PLBT50 – Standard GPL

PLBT50 – Standard GPL
Part No. Product name Taper Form Taper No. L Clamping range D1 D2 H Kgs Group
F1B525X-DCB16045 PLBT50 - Drill Chuck B 16 045 50 A B16 45 0.8 – 1.3 15.73 30 4 3.7 B4000
F1B525X-JTA06045 PLBT50 - Drill Chuck JTA 06 045 50 A JTA6 45 0.8 – 1.3 17.17 30 3.2 3.7 B4000

Accessories

Accessories
