MTA Morse Taper Adaptor (DIN228-2 Form D)

PLBT– Form AD & PLBT– Form A

Send enquiry

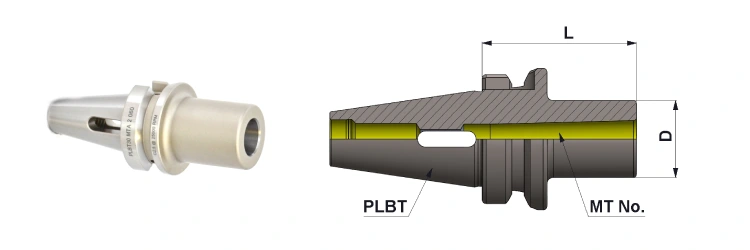

PLBT30 – Standard GPL

Part No.	Product name	Taper	Form	MT No.	L	D1	Kgs	Group
F1B321H-MTA01050	PLBT30 AD MORSE TAPER TANG 01 050	30	AD	1	50	25	0.4	B4000
F1B321H-MTA02060	PLBT30 AD MORSE TAPER TANG 02 060	30	AD	2	60	32	0.5	B4000
F1B321H-MTA03078	PLBT30 AD MORSE TAPER TANG 03 078	30	AD	3	78	40	0.7	B4000

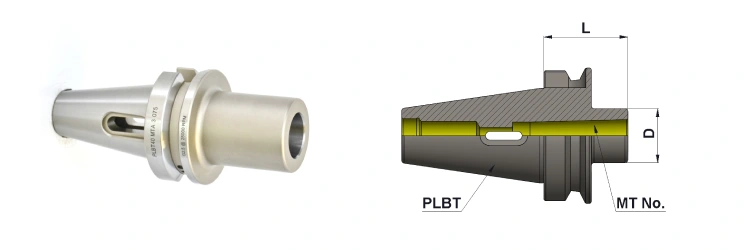

PLBT40 – Standard GPL

Part No.	Product name	Taper	Form	MT No.	L	D1	Kgs	Group
F1B421H-MTA01045	PLBT40 AD MORSE TAPER TANG 01 045	40	AD	1	45	25	1	B4000
F1B421H-MTA02060	PLBT40 AD MORSE TAPER TANG 02 060	40	AD	2	60	32	1	B4000
F1B421H-MTA03075	PLBT40 AD MORSE TAPER TANG 03 075	40	AD	3	75	40	1.1	B4000
F1B421H-MTA04095	PLBT40 AD MORSE TAPER TANG 04 095	40	AD	4	95	48	1.3	B4000

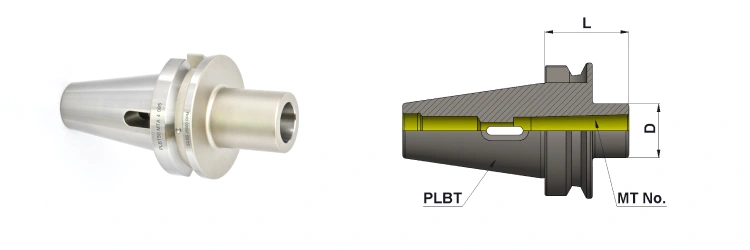

PLBT50 – Standard GPL

Part No.	Product name	Taper	Form	MT No.	L	D1	Kgs	Group
F1B521H-MTA01045	PLBT50 AD MORSE TAPER TANG 01 045	50	AD	1	45	25	3.5	B4000
F1B521H-MTA02045	PLBT50 AD MORSE TAPER TANG 02 045	50	AD	2	45	32	3.5	B4000
F1B521H-MTA03045	PLBT50 AD MORSE TAPER TANG 03 045	50	AD	3	45	40	3.5	B4000
F1B521H-MTA04095	PLBT50 AD MORSE TAPER TANG 04 095	50	AD	4	95	48	3.7	B4000
F1B521H-MTA05105	PLBT50 AD MORSE TAPER TANG 05 105	50	AD	5	105	70	4	B4000

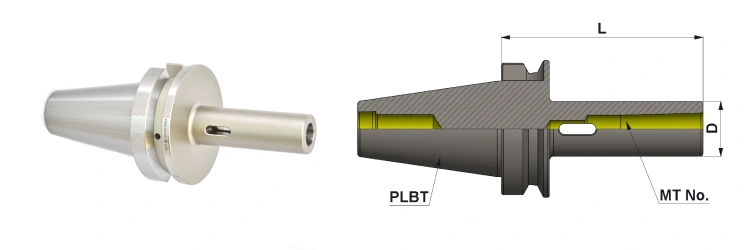

PLBT40 – Extended Length

Part No.	Product name	Taper	Form	MT No.	L	D1	Kgs	Group
F1B425H-MTA01120	PLBT40 A MORSE TAPER TANG 01 120	40	A	1	120	25	1.3	B4000
F1B425H-MTA02120	PLBT40 A MORSE TAPER TANG 02 120	40	A	2	120	32	1.4	B4000
F1B425H-MTA03135	PLBT40 A MORSE TAPER TANG 03 135	40	A	3	135	40	1.7	B4000

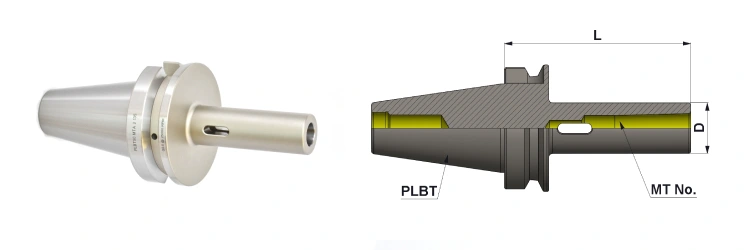

PLBT50 – Extended Length

Part No.	Product name	Taper	Form	MT No.	L	D1	Kgs	Group
F1B525H-MTA01120	PLBT50 A MORSE TAPER TANG 01 120	50	A	1	120	25	3.9	B4000
F1B525H-MTA02135	PLBT50 A MORSE TAPER TANG 02 135	50	A	2	135	32	4	B4000
F1B525H-MTA03150	PLBT50 A MORSE TAPER TANG 03 150	50	A	3	150	40	4.3	B4000

PLBT (FACE CONTACT)
