SK DIN 68971 tool holders from Falcon Toolings deliver high machining performance. SK DIN quick change tapping systems FWFLK1 and FWFLK2 are ergonomically designed to enhance the extension and compression of machining works. SK tool holder is specially designed for holding SK30, SK40 and SK50 taper spindle machines. These tool holders increase the high precision and accurate product finish. Tap Breakage in the machines is highly prevented by tapping chuck adaptors.
SK DIN 68971 are designed to fit the Right Hand or Left Hand Rotations and Horizontal or Vertical Applications. The additional fixture of SK DIN to the drilling and milling machine increases the machining output and save more operational time. SK DIN from falcon is suitable for high speed drilling operations. The chuck cutting pressure can be adjusted to ensure a positive start while starting the tapping cycle.

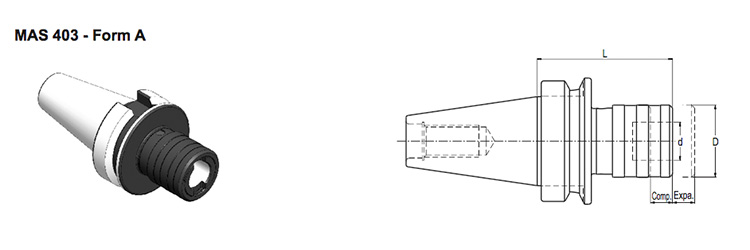

| Part No. | Description | d | D | L | Length Comp. | Expan. | Tap Size | Suitable Adaptors |
|---|---|---|---|---|---|---|---|---|
| F1S305X-WFLK1064 | SK30 FWFLK 1 64 | 19 | 36 | 64 | 7.5 | 7.5 | M3-M12 | WE1 /WES1 B |
| F1S405X-WFLK1060 | SK40 FWFLK 1 60 | 19 | 36 | 60 | 7.5 | 7.5 | M3-M12 | WE1 /WES1 B |
| F1S405X-WFLK2098 | SK40 FWFLK 2 98 | 31 | 53 | 98 | 12.5 | 12.5 | M8-M20 | WE2 /WES2 B |
| F1S505X-WFLK1060 | SK50 FWFLK 1 60 | 19 | 36 | 60 | 7.5 | 7.5 | M3-M12 | WE1 /WES1 B |
| F1S505X-WFLK2084 | SK50 FWFLK 2 84 | 31 | 53 | 84 | 12.5 | 12.5 | M8-M20 | WE2 /WES2 B |
