Adaptor - FWE 2B

With a team of experts, Falcon Toolings designs and manufactures Quick Change Adaptors without Safety Clutch at the best quality delivering the most reliable performance. The output of the CNC tool machining depends on the precision and accuracy of the finished workpiece product. FWE 2B adaptor is equipped with Quick Change Tapping Chuck to increase the tooling output on CNC Lathe, CNC Milling, Manual Lathe and Drilling Machines.

These Quick change adaptors prevent the tap breakages to the least and compared to other adaptors, FWE 2B is changed much quicker without causing any reduction in the output results. FWE 2B adaptors are suitable to hold the Taps ranges from M5 to M24. Falcon toolings manufacture the quick change adaptors in such a way that it does not result in accuracy and precision loss. The Tap Adaptor is chosen based on the shank diameter and tap square size equipped in the machine for tooling the workpiece.

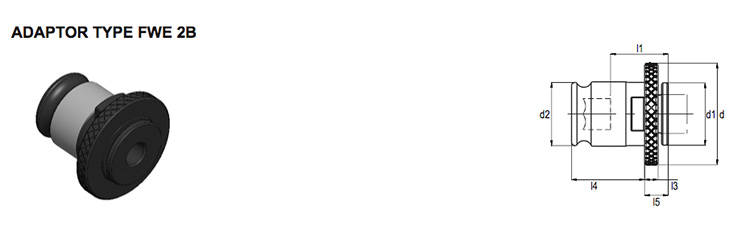

Adaptor Range	Tap Range	d	d1	d2	l1	l3	l4	l5
FWE 2B	M5-M20	48	30	31	30	5	35	11



S.no	Part no.	Description	DIA	SQ	Kgs	Group
1	F18812-77127	FWE2B Ø 6 SQ 4.9	6	4.9	0.25	B7000
2	F18812-77132	FWE2B Ø 6.2 SQ 5	6.2	5	0.25	B7000
3	F18812-77134	FWE2B Ø 6.3 SQ 5	6.3	5	0.25	B7000
4	F18812-77136	FWE2B Ø 7 SQ 5.5	7	5.5	0.25	B7000
5	F18812-77138	FWE2B Ø 7.1 SQ 5.6	7.1	5.6	0.25	B7000
6	F18812-77139	FWE2B Ø 8 SQ 6	8	6	0.25	B7000
7	F18812-77140	FWE2B Ø 8 SQ 6.2	8	6.2	0.25	B7000
8	F18812-77142	FWE2B Ø 8 SQ 6.3	8	6.3	0.25	B7000
9	F18812-77144	FWE2B Ø 8.5 SQ 6.5	8.5	6.5	0.25	B7000
10	F18812-77145	FWE2B Ø 9 SQ 7	9	7	0.25	B7000
11	F18812-77146	FWE2B Ø 9 SQ 7.1	9	7.1	0.25	B7000
12	F18812-77147	FWE2B Ø 10 SQ 8	10	8	0.25	B7000
13	F18812-77148	FWE2B Ø 10.5 SQ 8	10.5	8	0.25	B7000
14	F18812-77150	FWE2B Ø 11 SQ 9	11	9	0.25	B7000
15	F18812-77151	FWE2B Ø 11.2 SQ 9	11.2	9	0.25	B7000
16	F18812-77152	FWE2B Ø 12 SQ 9	12	9	0.24	B7000
17	F18812-77153	FWE2B Ø 12.5 SQ 10	12.5	10	0.24	B7000
18	F18812-77154	FWE2B Ø 13 SQ 10	13	10	0.24	B7000
19	F18812-77155	FWE2B Ø 14 SQ 11	14	11	0.24	B7000
20	F18812-77156	FWE2B Ø 14 SQ 11.2	14	11.2	0.24	B7000
21	F18812-77158	FWE2B Ø 15 SQ 12	15	12	0.24	B7000
22	F18812-77159	FWE2B Ø 16 SQ 12	16	12	0.20	B7000
23	F18812-77160	FWE2B Ø 16 SQ 12.5	16	12.5	0.20	B7000
24	F18812-77161	FWE2B Ø 17 SQ 13	17	13	0.20	B7000
25	F18812-77162	FWE2B Ø 18 SQ 14	18	14	0.20	B7000
27	F18812-77163	FWE2B Ø 18 SQ 14.5	18	14.5	0.20	B7000
28	F18812-77165	FWE2B Ø 19 SQ 15	19	15	0.20	B7000
