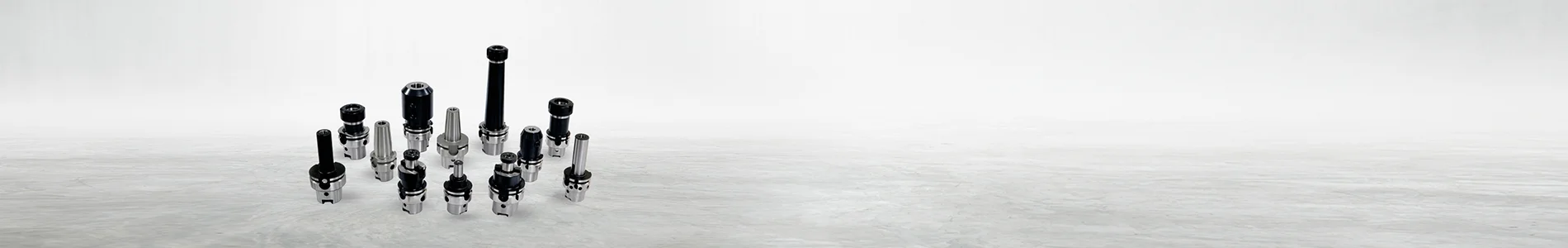

HSK_DIN69893

Precision.. Reliability.. Economy..

Side Lock Holder

Falcon’s range of side lock holder uses side locking screws to secure the tool shank against the bore of the tool holder and offer anti-pull-out protection. This makes the holders very well suited for heavy machining operations. The BT40 side lock holder is an ideal choice for heavy duty milling operations. The end mill pullout or a general tool pullout usually occurs when milling the heat resistant super alloys (HRSAs).

With the side lock system, a side lock end mill holder applies, the pullout can be avoided. The side lock end mill arbor is ideal for challenging machining materials, large tooling operations at slower speeds, roughing, and medium cutting applications where the part removal rate is the prior concern.

HSK A50

HSK-A50 Side Lock Holder
Part No. Product name Taper d. L L1 L2 D1 G T Kgs Group
F1A050H-SLA20100 HSK A50 SLA 20 100 B2.5G A50 20 100 25 20 50 M10 M12 1.4 B2200
F1A050H-SLA25110 HSK A50 SLA 25 110 B2.5G A50 25 110 25 20 50 M10 M12 1.4 B2200
F1A050H-SLA32110 HSK A50 SLA 32 110 B2.5G A50 32 110 30 20 60 M10 M12 1.8 B2200

HSK A63

HSK-A63 Side Lock Holder
Part No. Product name Taper d. L L1 L2 D1 G T Kgs Group
F1A063H-SLA25110 HSK A63 SLA 25 110 B2.5G A63 25 110 25 20 50 M10 M12 1.8 B2200
F1A063H-SLA32110 HSK A63 SLA 32 110 B2.5G A63 32 110 30 20 60 M10 M12 2 B2200
F1A063H-SLA40125 HSK A63 SLA 40 125 B2.5G A63 40 125 30 20 63 M12 M12 2.4 B2200

Grub Screw

Part No. L S G Group
F1GSWD-10M06 10 3 M6 D4400
F1GSWD-09M08 10 4 M8 D4400
F1GSWD-12M10 12 5 M10 D4400
F1GSWD-16M12 16 6 M12 D4400
F1GSWD-16M14 16 6 M14 D4400
F1GSWD-16M16 16 8 M16 D4400
F1GSWD-20M18 20 10 M18 D4400
F1GSWD-20M20 25 10 M20 D4400
F1GSWD-25M24 25 12 M24 D4400

Accessories

Side Lock Holder Accessories & Spares

Pre balanced G2.5@25000 RPM
