Precision.. Reliability.. Economy..

EMH - End Mill Holder (DIN 1835 - 2 Form B)

SK – Form AD/AF (AD+B) – G6.3

End mill holder are mainly used for securely holding cutters and endmills having Weldon flats with high levels of rigidity. It is used for securely holding the tool and preventing the tool from rotating while machining. It is mainly used for rough machining and for applications which require a large amount of material to be removed.

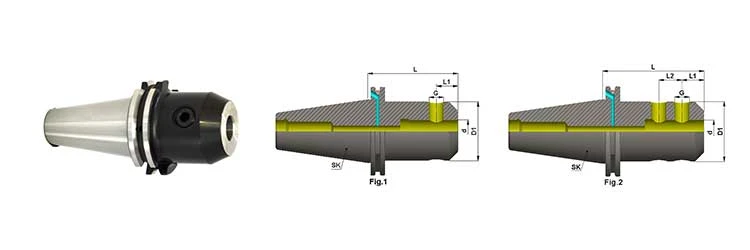

SK 40 – Standard GPL

SK 40
Part No. Product Name Taper Form d. L D1 G L1 L2 FIG Kgs Group
F1S409A-EMH06050 SK40 ADB EM 06 050 40 AD/AF 6 50 25 M6 18 - 1 0.9 B2200
F1S409A-EMH08050 SK40 ADB EM 08 050 40 AD/AF 8 50 28 M8 18 - 1 0.9 B2200
F1S409A-EMH10050 SK40 ADB EM 10 050 40 AD/AF 10 50 35 M10 20 - 1 0.9 B2200
F1S409A-EMH12050 SK40 ADB EM 12 050 40 AD/AF 12 50 42 M12 22.5 - 1 1.2 B2200
F1S409A-EMH14050 SK40 ADB EM 14 050 40 AD/AF 14 50 44 M12 22.5 - 1 1.2 B2200
F1S409A-EMH16063 SK40 ADB EM 16 063 40 AD/AF 16 63 48 M14 24 - 1 1.2 B2200
F1S409A-EMH18063 SK40 ADB EM 18 063 40 AD/AF 18 63 50 M14 24 - 1 1.3 B2200
F1S409A-EMH20063 SK40 ADB EM 20 063 40 AD/AF 20 63 52 M16 25 - 1 1.4 B2200
F1S409A-EMH25100 SK40 ADB EM 25 100 40 AD/AF 25 100 65 M18X2 24 25 2 1.6 B2200
F1S409A-EMH32100 SK40 ADB EM 32 100 40 AD/AF 32 100 72 M20X2 24 28 2 3.3 B2200
F1S409A-EMH40120 SK40 ADB EM 40 120 40 AD/AF 40 120 80 M20X2 30 32 2 4.7 B2200

SK 40 - GPL = 160 mm

SK 40 - GPL
Part No. Product Name Taper Form d. L D1 D2 G L1 L2 L3 FIG Kgs Group
F1S409A-EMH06160 SK40 ADB EM 06 160 40 AD/AF 6 160 25 35 M6 18 - 30 1 1.2 B2200
F1S409A-EMH08160 SK40 ADB EM 08 160 40 AD/AF 8 160 28 38 M8 18 - 32 1 1.2 B2200
F1S409A-EMH10160 SK40 ADB EM 10 160 40 AD/AF 10 160 35 40 M10 20 - 35 1 1.5 B2200
F1S409A-EMH12160 SK40 ADB EM 12 160 40 AD/AF 12 160 42 - M12 22.5 - - 1 1.7 B2200
F1S409A-EMH16160 SK40 ADB EM 16 160 40 AD/AF 16 160 48 - M14 24 - - 1 2 B2200
F1S409A-EMH20160 SK40 ADB EM 20 160 40 AD/AF 20 160 52 - M16 25 - - 1 2.7 B2200
F1S409A-EMH25160 SK40 ADB EM 25 160 40 AD/AF 25 160 65 - M18X2 24 25 - 2 2.6 B2200

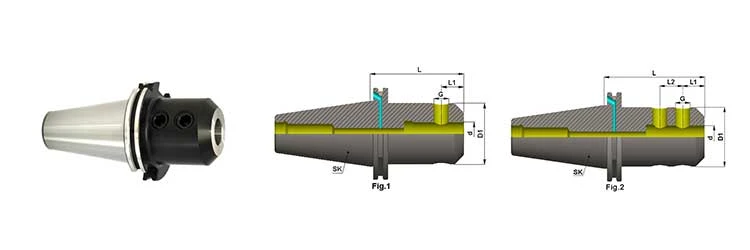

SK 50 – Standard GPL

SK 50 – Standard GPL
Part No. Product Name Taper Form d. L D1 G L1 L2 FIG Kgs Group
F1S509A-EMH06063 SK50 ADB EM 06 063 50 AD/AF 6 63 25 M6 18 - 1 2.7 B2200
F1S509A-EMH08063 SK50 ADB EM 08 063 50 AD/AF 8 63 28 M8 18 - 1 2.7 B2200
F1S509A-EMH10063 SK50 ADB EM 10 063 50 AD/AF 10 63 35 M10 20 - 1 2.8 B2200
F1S509A-EMH12063 SK50 ADB EM 12 063 50 AD/AF 12 63 42 M12 22.5 - 1 2.9 B2200
F1S509A-EMH14063 SK50 ADB EM 14 063 50 AD/AF 14 63 44 M12 22.5 - 1 3 B2200
F1S509A-EMH16063 SK50 ADB EM 16 063 50 AD/AF 16 63 48 M14 24 - 1 3 B2200
F1S509A-EMH18063 SK50 ADB EM 18 063 50 AD/AF 18 63 50 M14 24 - 1 3.1 B2200
F1S509A-EMH20063 SK50 ADB EM 20 063 50 AD/AF 20 63 52 M16 25 - 1 3.2 B2200
F1S509A-EMH25080 SK50 ADB EM 25 080 50 AD/AF 25 80 65 M18X2 24 25 2 3.3 B2200
F1S509A-EMH32100 SK50 ADB EM 32 100 50 AD/AF 32 100 72 M20X2 24 28 2 4.3 B2200
F1S509A-EMH40100 SK50 ADB EM 40 100 50 AD/AF 40 100 90 M20X2 30 32 2 5.5 B2200

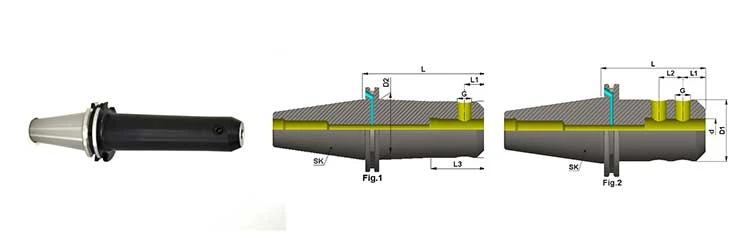

SK 50 - GPL = 160mm

SK 50 - GPL
Part No. Product Name Taper Form d. L D1 D2 G L1 L2 L3 FIG Kgs Group
F1S509A-EMH06160 SK50 ADB EM 06 160 50 AD/AF 6 160 25 35 M6 18 - 30 1 3 B2200
F1S509A-EMH08160 SK50 ADB EM 08 160 50 AD/AF 8 160 28 38 M8 18 - 32 1 3 B2200
F1S509A-EMH10160 SK50 ADB EM 10 160 50 AD/AF 10 160 35 42 M10 20 - 35 1 3.2 B2200
F1S509A-EMH12160 SK50 ADB EM 12 160 50 AD/AF 12 160 42 48 M12 22.5 - 35 1 3.5 B2200
F1S509A-EMH14160 SK50 ADB EM 14 160 50 AD/AF 14 160 44 50 M12 22.5 - 35 1 3.6 B2200
F1S509A-EMH16160 SK50 ADB EM 16 160 50 AD/AF 16 160 48 54 M14 24 - 40 1 3.8 B2200
F1S509A-EMH18160 SK50 ADB EM 18 160 50 AD/AF 18 160 50 56 M14 24 - 40 1 4 B2200
F1S509A-EMH20160 SK50 ADB EM 20 160 50 AD/AF 20 160 52 59 M16 25 - 45 1 4.5 B2200
F1S509A-EMH25160 SK50 ADB EM 25 160 50 AD/AF 25 160 65 70 M18X2 24 25 62 2 4.4 B2200
F1S509A-EMH32160 SK50 ADB EM 32 160 50 AD/AF 32 160 72 - M20X2 24 28 - 2 5.2 B2200

Grub Screw

Grub Screw
Part No. G L S Group
F1GSWD-10M06 M6 10 3 D4400
F1GSWD-10M08 M8 10 4 D4400
F1GSWD-12M10 M10 12 5 D4400
F1GSWD-16M12 M12 16 6 D4400
F1GSWD-16M14 M14 16 6 D4400
F1GSWD-16M16 M16 16 8 D4400
F1GSWD-20M18 M18 20 10 D4400
F1GSWD-20M20 M20 20 10 D4400
F1GSWD-25M24 M24 25 12 D4400



Accessories

End Mill Holder Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
