SLA - Side Lock Holder (ISO 9766)

Form AD

Side lock holders also known as Drill Holders are used to hold indexable type drills – Cylindrical shanks with parallel flats (ISO9766) with great rigidity and accuracy.

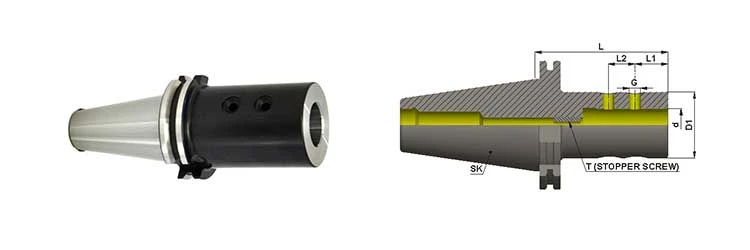

SK 40 Form AD

SK 40 Form AD
Part No. Product Name Taper Form d. L G D1 L1 L2 T Kgs Group
F1S401A-SLA20090 SK40 AD SLA 20 090 40 AD 20 90 M10 50 25 20 M12 1.7 B2200
F1S401A-SLA25090 SK40 AD SLA 25 090 40 AD 25 90 M10 50 25 20 M12 1.6 B2200
F1S401A-SLA32090 SK40 AD SLA 32 090 40 AD 32 90 M10 60 30 20 M12 1.8 B2200
F1S401A-SLA40090 SK40 AD SLA 40 090 40 AD 40 90 M12 63 30 20 M12 1.6 B2200

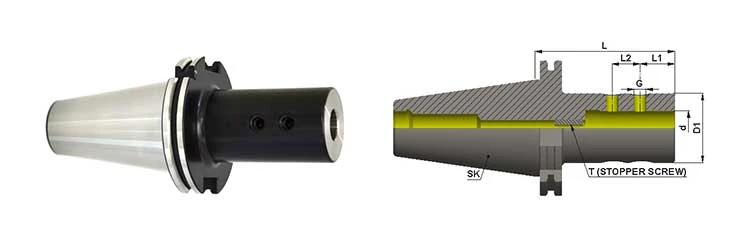

SK 50 Form AD

SK 50 Form AD
Part No. Product Name Taper Form d. L G D1 L1 L2 T Kgs Group
F1S501A-SLA20105 SK50 AD SLA 20 105 50 AD 20 105 M10 50 25 20 M12 3.7 B2200
F1S501A-SLA25105 SK50 AD SLA 25 105 50 AD 25 105 M10 50 25 20 M12 3.6 B2200
F1S501A-SLA32105 SK50 AD SLA 32 105 50 AD 32 105 M10 60 30 20 M12 4 B2200
F1S501A-SLA40105 SK50 AD SLA 40 105 50 AD 40 105 M12 70 30 20 M12 4.4 B2200

Grub Screw

Grub Screw
Part No. G L S Group
F1GSWD-10M06 M6 10 3 D4400
F1GSWD-10M08 M8 10 4 D4400
F1GSWD-12M10 M10 12 5 D4400
F1GSWD-16M12 M12 16 6 D4400
F1GSWD-16M14 M14 16 6 D4400
F1GSWD-16M16 M16 16 8 D4400
F1GSWD-20M18 M18 20 10 D4400
F1GSWD-20M20 M20 20 10 D4400
F1GSWD-25M24 M24 25 12 D4400



Accessories

SLA - Side Lock Holder Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
