ERS - ER Collet Chuck (DIN6499 Form C)

SK – Form AD/AF (AD+B) – G6.3

ER collet chucks also known as Easy-Release collet chucks are one of the most popular tooling systems, it is mainly used to hold cylindrical shank tools in ER collets. Falcon offers high precision collet chucks with minimal run-out which results in longer tool life, higher part accuracy and excellent surface finish. It also reduces inventory costs by offering high flexibility. Falcon offers collet chucks ranging from ER08 mini to ER50.

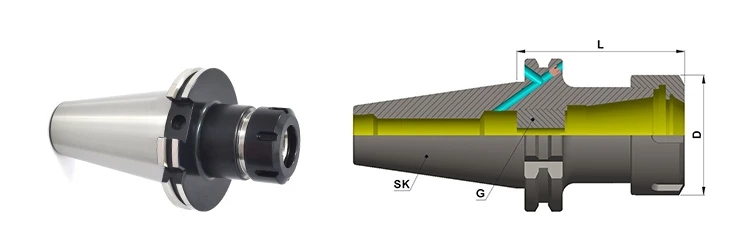

SK 40 – Standard GPL

SK 40 – Standard GPL
Part No. Product Name Taper Form Size L Champing Range G D Nut Kgs Group
F1S409A-ERS16063 SK40 ADB ER 16 063 40 AD/AF ER16 63 1-10 SCW7/16 28 F15500-16ERH 0.9 B1000
F1S409A-ERS25060 SK40 ADB ER 25 060 40 AD/AF ER25 60 1-16 M18X1.5 42 F15500-25ERS 1 B1000
F1S409A-ERS32070 SK40 ADB ER 32 070 40 AD/AF ER32 70 2-20 M22X1.5 50 F15500-32ERS 1.1 B1000
F1S409A-ERS40080 SK40 ADB ER 40 080 40 AD/AF ER40 80 3-26 M28X1.5 63 F15500-40ERS 1.4 B1000

SK 40 – GPL = 100 mm

SK 40 – GPL
Part No. Product Name Taper Form Size L Champing Range G D Nut Kgs Group
F1S409A-ERS16100 SK40 ADB ER 16 100 40 AD/AF ER16 100 1-10 SCW7/16 28 F15500-16ERH 1.1 B1000
F1S409A-ERS25100 SK40 ADB ER 25 100 40 AD/AF ER25 100 1-16 M18X1.5 42 F15500-25ERS 1.3 B1000
F1S409A-ERS32100 SK40 ADB ER 32 100 40 AD/AF ER32 100 2-20 M22X1.5 50 F15500-32ERS 1.3 B1000
F1S409A-ERS40100 SK40 ADB ER 40 100 40 AD/AF ER40 100 3-26 M28X1.5 63 F15500-40ERS 1.6 B1000

SK 40 – GPL = 160 mm

SK 40 – GPL
Part No. Product Name Taper Form Size L L1 Champing Range G D D1 Nut Kgs Group
F1S409A-ERS16160 SK40 ADB ER 16 160 40 AD/AF ER16 160 34 1-10 SCW7/16 28 22 F15500-16ERH 1.5 B1000
F1S409A-ERS25160 SK40 ADB ER 25 160 40 AD/AF ER25 160 33 1-16 M18X1.5 42 32 F15500-25ERS 1.9 B1000
F1S409A-ERS32160 SK40 ADB ER 32 160 40 AD/AF ER32 160 33 2-20 M22X1.5 50 40 F15500-32ERS 1.9 B1000

SK 50 – Standard GPL

SK 50 – Standard GPL
Part No. Product Name Taper Form Size L Champing Range G D Nut Kgs Group
F1S509A-ERS25070 SK50 ADB ER 25 070 50 AD/AF ER25 70 1-16 M18X1.5 42 F15500-25ERS 2.8 B1000
F1S509A-ERS32070 SK50 ADB ER 32 070 50 AD/AF ER32 70 2-20 M22X1.5 50 F15500-32ERS 3 B1000
F1S509A-ERS40080 SK50 ADB ER 40 080 50 AD/AF ER40 80 3-26 M28X1.5 63 F15500-40ERS 3.1 B1000

SK 50 - GPL = 100 mm

SK 50 - GPL
Part No. Product Name Taper Form Size L Champing Range G D Nut Kgs Group
F1S509A-ERS16100 SK50 ADB ER 16 100 50 AD/AF ER16 100 1-10 SCW7/16 28 F15500-16ERH 2.9 B1000
F1S509A-ERS25100 SK50 ADB ER 25 100 50 AD/AF ER25 100 1-16 M18X1.5 42 F15500-25ERS 3.2 B1000
F1S509A-ERS32100 SK50 ADB ER 32 100 50 AD/AF ER32 100 2-20 M22X1.5 50 F15500-32ERS 3.4 B1000
F1S509A-ERS40100 SK50 ADB ER 40 100 50 AD/AF ER40 100 3-26 M28X1.5 63 F15500-40ERS 3.5 B1000

SK 50 - GPL = 160 mm

SK 50 - GPL
Part No. Product Name Taper Form Size L L1 Champing Range G D D1 Nut Kgs Group
F1S509A-ERS16160 SK50 ADB ER 16 160 50 AD/AF ER16 160 30.6 1-10 SCW7/16 28 28 F15500-16ERH 3.1 B1000
F1S509A-ERS25160 SK50 ADB ER 25 160 50 AD/AF ER25 160 32 1-16 M18X1.5 42 40 F15500-25ERS 3.4 B1000
F1S509A-ERS32160 SK50 ADB ER 32 160 50 AD/AF ER32 160 33 2-20 M22X1.5 50 48 F15500-32ERS 3.8 B1000
Stopper Screw

Stopper Screw

Part No. G L Group
F1SCWM-20M06 M6 20 D4400
F1SCWA-20U11 7/16 20 D4400
F1SCWM-20M14 M14 20 D4400
F1SCWM-20M18 M18 20 D4400
F1SCWM-20M22 M22 20 D4400
F1SCWM-20M28 M28 20 D4400

Accessories

Collect Chuck Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
