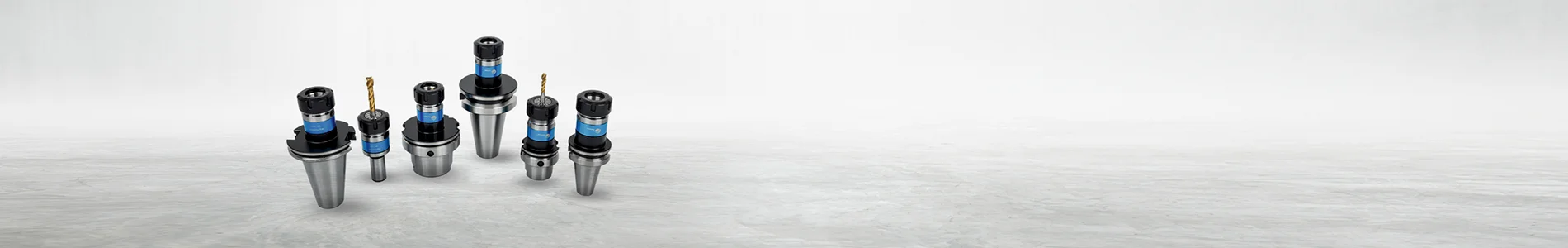

Synchronous Tapping Chuck

Precision.. Reliability.. Economy..

BT(DIN ISO 7388-2) (MAS 403)

Machine Design

BT40 - Synchro chucks

BT40-Synchro Chucks Specification
Part No. Product name Taper D1 D2 L Size Clamping range Tap Size Compression Expansion Kgs Group
F1B409X-STC16079 BT40 ADB SYNCHRO TAP.CHUCK ER16 079 40 28 34 79 ER16 3.15 – 10 M3 – M12 0.5 0.5 1.20 B7000
F1B409X-STC20085 BT40 ADB SYNCHRO TAP.CHUCK ER20 085 40 35 34 85 ER20 3.5 – 12 M3 – M16 0.5 0.5 1.28 B7000
F1B409X-STC25089 BT40 ADB SYNCHRO TAP.CHUCK ER25 089 40 42 34 89 ER25 3.5 – 16 M3 – M20 0.5 0.5 1.35 B7000
F1B409X-STC32110 BT40 ADB SYNCHRO TAP.CHUCK ER32 110 40 50 45 110 ER32 3.5 – 20 M4 – M27 0.5 0.5 1.64 B7000
F1B409X-STC40115 BT40 ADB SYNCHRO TAP.CHUCK ER40 115 40 63 62 115 ER40 4.0 – 25 M6 – M33 0.5 0.5 2.30 B7000

BT50 - Synchro chucks

BT50-Synchro Chucks Specification
Part No. Product name Taper D1 D2 L Size Clamping range Tap Size Compression Expansion Kgs Group
F1B509X-STC16095 BT50 ADB SYNCHRO TAP.CHUCK ER16 095 50 28 34 95 ER16 3.15 – 10 M3 – M12 0.5 0.5 3.79 B7000
F1B509X-STC20100 BT50 ADB SYNCHRO TAP.CHUCK ER20 100 50 35 34 100 ER20 3.5 – 12 M3 – M16 0.5 0.5 3.87 B7000
F1B509X-STC25110 BT50 ADB SYNCHRO TAP.CHUCK ER25 110 50 42 34 110 ER25 3.5 – 16 M3 – M20 0.5 0.5 3.95 B7000
F1B509X-STC32120 BT50 ADB SYNCHRO TAP.CHUCK ER32 120 50 50 45 120 ER32 3.5 – 20 M4 – M27 0.5 0.5 4.16 B7000
F1B509X-STC40120 BT50 ADB SYNCHRO TAP.CHUCK ER40 120 50 63 62 120 ER40 4.0 – 25 M6 – M33 0.5 0.5 4.89 B7000
