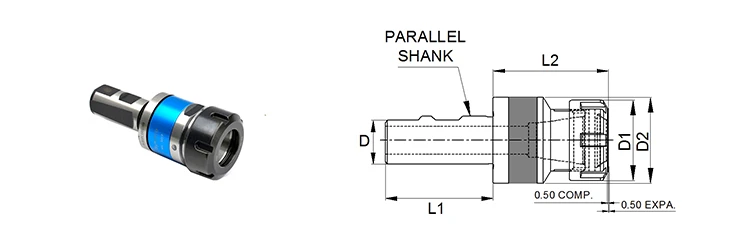

Parallel Shank (DIN 1835 B+E)

Parallel Shank - Synchro Chucks

Part No.	Product name	Taper	D1	D2	L1	L2	Size	Clamping range	Tap Size	Compression	Expansion	Kgs	Group
F1PS20X-STC16058	PS20 SYNCHRO TAP. CHUCK ER16 058	20	28	34	51	58	ER16	3.15 – 10	M3 – M12	0.5	0.5	0.31	B7000
F1PS25X-STC16060	PS25 SYNCHRO TAP. CHUCK ER16 060	25	28	34	56	60	ER16	3.15 – 10	M3 – M12	0.5	0.5	0.41	B7000
F1PS25X-STC20061	PS25 SYNCHRO TAP. CHUCK ER20 061	25	35	34	56	61	ER20	3.5 – 12	M3 – M16	0.5	0.5	0.49	B7000
F1PS25X-STC25065	PS25 SYNCHRO TAP. CHUCK ER25 065	25	42	34	56	65	ER25	3.5 – 16	M3 – M20	0.5	0.5	0.55	B7000
F1PS25X-STC32087	PS25 SYNCHRO TAP. CHUCK ER32 069	25	50	45	56	87	ER32	3.5 – 20	M4 – M27	0.5	0.5	0.71	B7000
F1PS32X-STC40108	PS32 SYNCHRO TAP. CHUCK ER40 108	32	63	62	61	108.5	ER40	4.0 – 25	M6 – M33	0.5	0.5	0.69	B7000

BT50 - Synchro chucks

Part No.	Product name	Taper	D1	D2	L	Size	Clamping range	Tap Size	Compression	Expansion	Kgs	Group
F1B509X-STC16095	BT50 ADB SYNCHRO TAP.CHUCK ER16 095	50	28	34	95	ER16	3.5 – 10	M3 – M12	0.5	0.5	3.79	B7000
F1B509X-STC20100	BT50 ADB SYNCHRO TAP.CHUCK ER20 100	50	35	34	100	ER20	3.5 – 12	M3 – M16	0.5	0.5	3.87	B7000
F1B509X-STC25110	BT50 ADB SYNCHRO TAP.CHUCK ER25 110	50	42	34	110	ER28	3.5 – 16	M3 – M20	0.5	0.5	3.95	B7000
F1B509X-STC32120	BT50 ADB SYNCHRO TAP.CHUCK ER32 120	50	50	45	120	ER32	3.5 – 20	M4 – M27	0.5	0.5	4.16	B7000
F1B509X-STC40120	BT50 ADB SYNCHRO TAP.CHUCK ER40 120	50	63	62	120	ER40	4.0 – 25	M6 – M33	0.5	0.5	4.89	B7000
