HSK (DIN 69893)

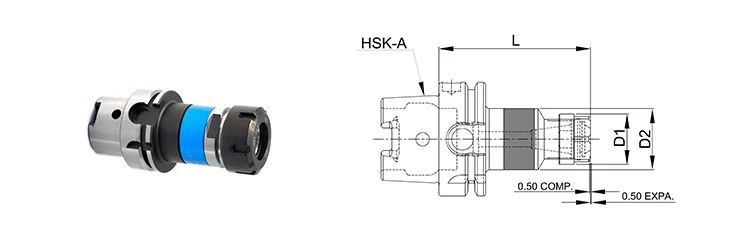

HSK A63 - Synchro Chucks

Part No.	Product name	Taper	D1	D2	L	Size	Clamping range	Tap Size	Compression	Expansion	Kgs	Group
F1A063X-STC16089	HSK A63 SYNCHRO TAP. CHUCK ER16 089	A63	28	34	89	ER16	3.15 – 10	M3 – M12	0.5	0.5	0.85	B7000
F1A063X-STC20090	HSK A63 SYNCHRO TAP. CHUCK ER20 090	A63	35	34	90	ER20	3.5 – 12	M3 – M16	0.5	0.5	0.93	B7000
F1A063X-STC25094	HSK A63 SYNCHRO TAP. CHUCK ER25 094	A63	42	34	94	ER25	3.5 – 16	M3 – M20	0.5	0.5	1.00	B7000
F1A063X-STC32105	HSK A63 SYNCHRO TAP. CHUCK ER32 105	A63	50	45	105	ER32	3.5 – 20	M4 – M27	0.5	0.5	1.31	B7000
F1A063X-STC40133	HSK A63 SYNCHRO TAP. CHUCK ER40 133	A63	63	62	133.5	ER40	4.0 – 25	M6 – M33	0.5	0.5	1.95	B7000

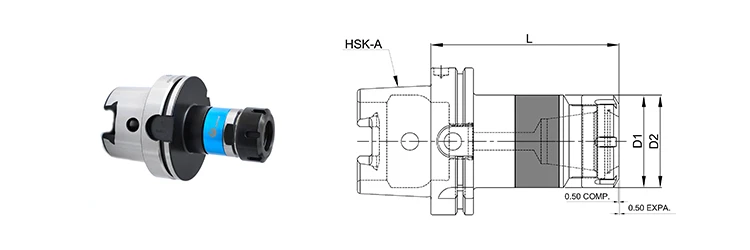

HSK A100 - Synchro Chucks

Part No.	Product name	Taper	D1	D2	L	Size	Clamping range	Tap Size	Compression	Expansion	Kgs	Group
F1A100X-STC16096	HSK A100 SYNCHRO TAP. CHUCK ER16 096	A100	28	34	96	ER16	3.15 – 10	M3 – M12	0.5	0.5	2.19	B7000
F1A100X-STC20097	HSK A100 SYNCHRO TAP. CHUCK ER20 097	A100	35	34	97	ER20	3.5 – 12	M3 – M16	0.5	0.5	2.27	B7000
F1A100X-STC25101	HSK A100 SYNCHRO TAP. CHUCK ER25 101	A100	42	34	101	ER25	3.5 – 16	M3 – M20	0.5	0.5	2.34	B7000
F1A100X-STC32110	HSK A100 SYNCHRO TAP. CHUCK ER32 110	A100	50	45	110	ER32	3.5 – 20	M4 – M27	0.5	0.5	2.67	B7000
F1A100X-STC40133	HSK A100 SYNCHRO TAP. CHUCK ER40 133	A100	63	62	133	ER40	4.0 – 25	M6 – M33	0.5	0.5	3.29	B7000
