Synchronous Tapping Chuck

Precision.. Reliability.. Economy..

SK (DIN ISO 7388-1) (DIN 69871)

Machine Design

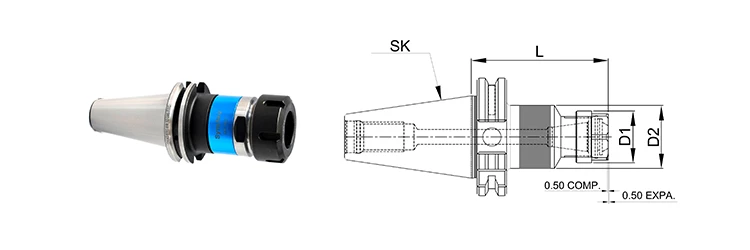

SK40 - Synchro chucks

SK-40 Syncro Chuck
Part No. Product name Taper D1 D2 L Size Clamping range Tap Size Compression Expansion Kgs Group
F1S409X-STC16079 SK40 ADB SYNCHRO TAP.CHUCK ER16 079 40 28 34 79 ER16 3.15 – 10 M3 – M12 0.5 0.5 1.04 B7000
F1S409X-STC20080 SK40 ADB SYNCHRO TAP.CHUCK ER20 080 40 35 34 80 ER20 3.5 – 12 M3 – M16 0.5 0.5 1.09 B7000
F1S409X-STC25084 SK40 ADB SYNCHRO TAP.CHUCK ER25 084 40 42 34 84 ER25 3.5 – 16 M3 – M20 0.5 0.5 1.16 B7000
F1S409X-STC32095 SK40 ADB SYNCHRO TAP.CHUCK ER32 095 40 50 45 95 ER32 3.5 – 20 M4 – M27 0.5 0.5 1.41 B7000
F1S409X-STC40120 SK40 ADB SYNCHRO TAP.CHUCK ER40 120 40 63 62 120 ER40 4.0 – 25 M6 – M33 0.5 0.5 2.10 B7000

SK50 - Synchro chucks

SK-50 Syncro Chuck Specification
Part No. Product name Taper D1 D2 L Size Clamping range Tap Size Compression Expansion Kgs Group
F1S509X-STC16079 SK50 ADB SYNCHRO TAP.CHUCK ER16 079 50 28 34 79 ER16 3.15 – 10 M3 – M12 0.5 0.5 2.83 B7000
F1S509X-STC20080 SK50 ADB SYNCHRO TAP.CHUCK ER20 080 50 35 34 80 ER20 3.5 – 12 M3 – M16 0.5 0.5 2.91 B7000
F1S509X-STC25084 SK50 ADB SYNCHRO TAP.CHUCK ER25 084 50 42 34 84 ER25 3.5 – 16 M3 – M20 0.5 0.5 3.01 B7000
F1S509X-STC32095 SK50 ADB SYNCHRO TAP.CHUCK ER32 095 50 50 45 95 ER32 3.5 – 20 M4 – M27 0.5 0.5 3.41 B7000
F1S509X-STC40105 SK50 ADB SYNCHRO TAP.CHUCK ER40 105 50 63 62 105 ER40 4.0 – 25 M6 – M33 0.5 0.5 3.93 B7000
